NEW CARBON DISC CYCLOCROSS FRAME CX535



Use for: Cyclo-Cross Bike (DI2 compatible)

Frame: CX535

Material: full Toray carbon

Finish: UD matt/Clear coating

Frame+Fork weight: 1550±45g

Headset: Tapered (1-1/8" to 1-1/2")

BB: English BB/BB30/PF30

Available sizes: 50/52/54/56/58cm

Frame Space: 142*12mm thru axle

Fork Space: 100*12mm thru axle

Max Tire Size: 700C*42C

Warranty: 2 years

Related Products :

  • Name: DISC Brake CX535
  • Model:
  • Download SGS:Download
SPEC



NEW CARBON DISC CYCLOCROSS FRAME CX535



Use for: Cyclo-Cross Bike (DI2 compatible)

Frame: CX535

Material: full Toray carbon

Finish: UD matt/Clear coating

Frame+Fork weight: 1550±45g

Headset: Tapered (1-1/8" to 1-1/2")

BB: English BB/BB30/PF30

Available sizes: 50/52/54/56/58cm

Frame Space: 142*12mm thru axle

Fork Space: 100*12mm thru axle

Max Tire Size: 700C*42C

Warranty: 2 years

FEATURES

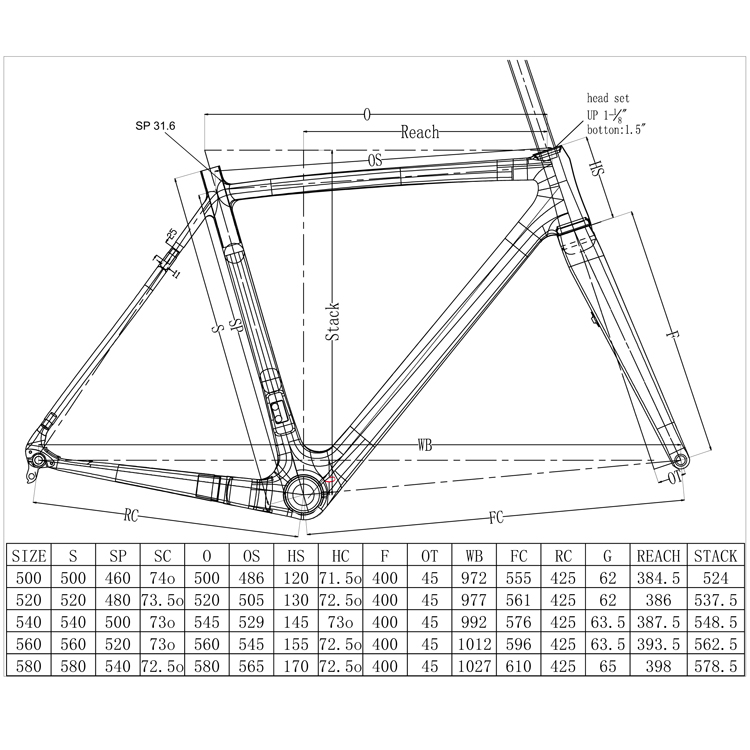

GEOMETRY
