2019 NEW FULL HIDDEN DISC ROAD FRAME R12



Use for: Road D-Brake Bike (DI2 compatible, full internal cables rounting)

Frame: R12 (Updated model on R10)

Feature: Thru axle (Front 100*12mm, Rear 142*12mm)

Material: full Toray T700/T800

Finish: UD matt/Clear coating

Weight: 1150±45g (54cm, around 100-120g less of T800 light version)

Headset: Tapered (1-1/8" to 1-1/2")

BB: BB386 (Dia 46mm)

Availalbe sizes: 49/52/54/56/58/61cm

Disc Brake: Flat mount

Max Tire Size: 28C (Max 32C)

Warranty: 2 years

Related Products :

  • Name: R12
  • Model:
  • Download SGS:Download
SPEC



2019 NEW FULL HIDDEN DISC ROAD FRAME R12



Use for: Road D-Brake Bike (DI2 compatible, full internal cables rounting)

Frame: R12 (Updated model on R10)

Feature: Thru axle (Front 100*12mm, Rear 142*12mm)

Material: full Toray T700/T800

Finish: UD matt/Clear coating

Weight: 1150±45g (54cm, around 100-120g less of T800 light version)

Headset: Tapered (1-1/8" to 1-1/2")

BB: BB386 (Dia 46mm)

Availalbe sizes: 49/52/54/56/58/61cm

Disc Brake: Flat mount

Max Tire Size: 28C (Max 32C)

Warranty: 2 years

FEATURES

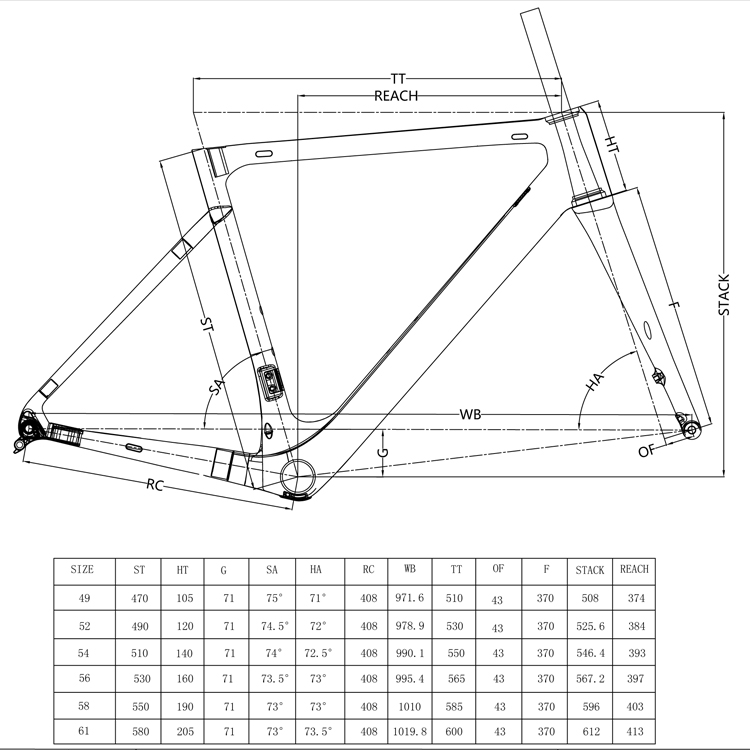

GEOMETRY
